2 x 4 Stacked Magnetic RJ45 Connector 1000 Base T with LED and EMI Tab Spring

2 x 4 Stacked Magnetic RJ45 Connector 1000 Base T with LED and EMI Tab Spring

1. 2 x 4 Stacked Magnetic RJ45 Connector Product Attributes

• 2 x4 RJ45 8P8C ports
• With Magnetics
• With green or yellow color LEDs
• With 0.2mm Brass Shield,
• Supports 1000 BASE -T application
• Operation Temp: 0 ~ 70 ℃
• Storage Temp: -40 ~ 85 ℃

3. 2 x 4 Stacked Magnetic RJ45 Connector Applications

• Internet of Things (Ethernet)
• Network interface cards (NIC)
• Industrial process control
• Networking and communications
• Broadcast video
• Switchers
• Splitters

4. 2 x 4 Stacked Magnetic RJ45 Connector Materials

• Housing: Class Filled PA46 UL94V-0 (ROHS)
• Sheliding: 0.2mm thickness With Brass (RoHS)
• Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 30 Microinches Gold At Mating Interface
• Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
• All the Raw materials meet RoHS
• Operating Temperature: 0 ℃ to +70 ℃, Storage Temperature : -40 to 85 ℃

5. Why Choose GLGNET?

• We support Costom Service;
• Our products are compliant with RoHS, REACH and UL certification
• Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
• 20KK Prots / Month Capacity
• ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
• 20 years experiences in Magnetic RJ45 Connectors
• 1500 Employees
• 58 R&D Engineers.
• 22000 square meters Factory
• We have our Own Hardware Mold and Plastic Mold

• Has 3 LS-WEDM Machines

• Has 12 WEDM Machines and 8 CNC Machines

• Has 20 Grinding Machines and 12 Electrical Discharge Machines

• Has 30 Stamping Machines
• Has 55 Plastic Injection Machines

• Has Automatic Assembly Workshops

6. Customization Services

• Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
• Supports to custom different Pin Length;
• LED color can be green, yellow, orange, red and so on;
• Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
• Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
• With or without POE function;
• 90 ° or 180 ° Orientation
• Being with or without LED diode,
• Being with or without EMT TAB ( EMI Spring , EMI Finger );
• Being with or without lightpipes;
• Printing LOGO

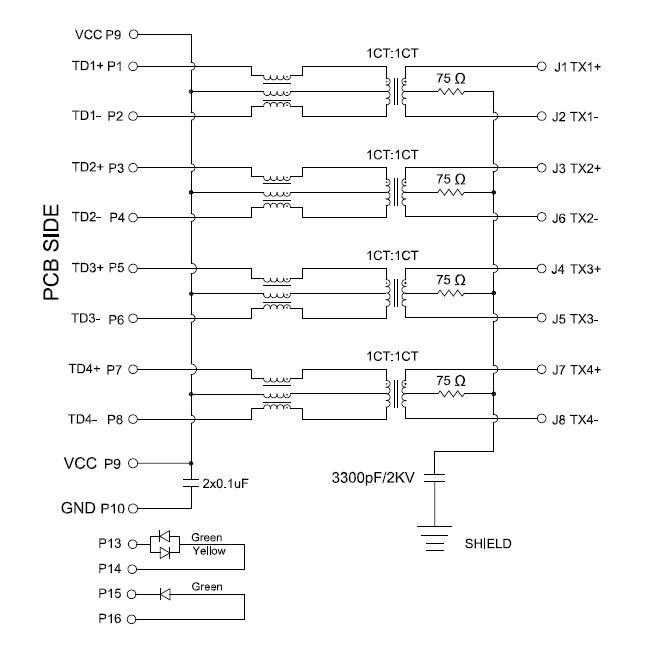

7. Integrated Magnetic Schematic Drawing

magnetic modular jack

rj45 connector with magnetics
