Through Hole Mounting 2x4 Stacked RJ45 Connectors 1G Ethernet With Surge Protection

Product Categories

Shenzhen GLGNET Electronics Co., LTD

Contact Now

Name: Through Hole Mounting 2x4 Stacked RJ45 Connectors 1G Ethernet With Surge Protection
Brand: GLGNET
Price: 1 USD

Brand Name : GLGNET

Model Number : JDHA4T860S

Certification : IECQ QC080000, UL, ISO9001, ISO1400, RoHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20kkports/month

Delivery Time : 10 working days

Packaging Details : Tray, Tube, Reel, Carton

Application : 1G Ethernet

Port : 2 x 4

LED : Without

Surge Protection : Yes

Mounting Type : Through Hole

Shield : Yes

Contact Now

2x4 Stacked RJ45 Jack without LED with Surge Protection for 1G Ethernet

1. Features

Number of Ports	2 x 4
PCB	FR4
Package Height (mm)	25.27
Package Length (mm)	28.4
Package Width (mm)	59.18
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	1000 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

2. Materials

Housing: Class Filled PBT UL94V-0 (ROHS)
Contact: Phosphor Bronze, 50-100 Microinches Min, Overall Ductile Nickel Underplate with selected 6 Microinches Gold At Mating Interface;
Shield: 0.2mm Thickness With Brass
Jack Cavity Conforms to FCC rules and regulations part 68 subpart F
The Part is recommended for wave soldering process peak soldering temperature is 260 ℃ MAX. 10 Seconds Max;
Operating Temperature: 0 ℃ to +70 ℃
Storage Temperature: -40 ℃ to +85 ℃

3. Why Choose GLGNET?

20 years experiences in Magnetic RJ45 Connector
1500 Employees
58 R&D Engineers.
Our products are compliant with RoHS, REACH and UL certification
Long term Corporation with HUAWEI, ZTE, FOXCONN, XIAOMI, TCL and so on
20KK Prots / Month Capacity
ISO9001, ISO14001, QC080000, OHSAS18001, and IECC international management system certification
We have our Own Hardware Mold and Plastic Mold
Has 3 LS-WEDM Machines
Has 12 WEDM Machines and 8 CNC Machines
Has 20 Grinding Machines and 12 Electrical Discharge Machines
Has 30 Stamping Machines
Has 55 Plastic Injection Machines
Has Automatic Assembly Workshops

4. 2 X 4 ports Stacked RJ45 Jack Electrical Specification:

Parameter	Specification
Brand	GLGNET
Operating Temperature	0 to 70 ℃
Turns Ratio	1:1±2%
Open Circuit Inductance (ocl)	350uH MIN@ 100KHz/100mV with 8mA DC Bias
Insertion Loss (IL)	-1.0dB MAX @ 0.3MHz – 100MHZ; -1.2dB MAX @ 100MHz - 125MHz;
Return Loss (RL) Z out = 100 OHM	-18dB MIN @ 1MHz – 30MHZ; -13dB MIN @ 30MHz – 60MHZ; -10dB MIN @ 60MHz – 100MHZ;
Crosstalk Adjacent Channels	-30dB MIN @ 1MHz – 100MHZ
Common Mode Rejection Ratio (CMRR)	-30dB MIN @ 1 MHz – 100MHZ
HI - POT	400 VDC TYP
Protection	10/700uS, 6KV Common Protection Module

5. Applications

Networking equipment

Equipment utilizing a network port

6. Customization Services

90 ° or 180 ° Orientation
Single Port or Multiple Port, Ganged structure or Stacked Structure;
With or without POE function;
Supports to custom different structure, Tab - up or Tab - Down, Different size, Different Color, With or without Transformer;
Supports to custom different Pin Length;
LED color can be green, yellow, orange, red and so on;
Operating Temp. Can be 0 ~ 70 ℃ or -40 ~ 85 ℃ ;
Contact Finish can be with 6u", 15u", 30u", 50u" gold plating;
Being with or without EMT TAB ( EMI Spring , EMI Finger );
Being with or without lightpipes;
Printing LOGO

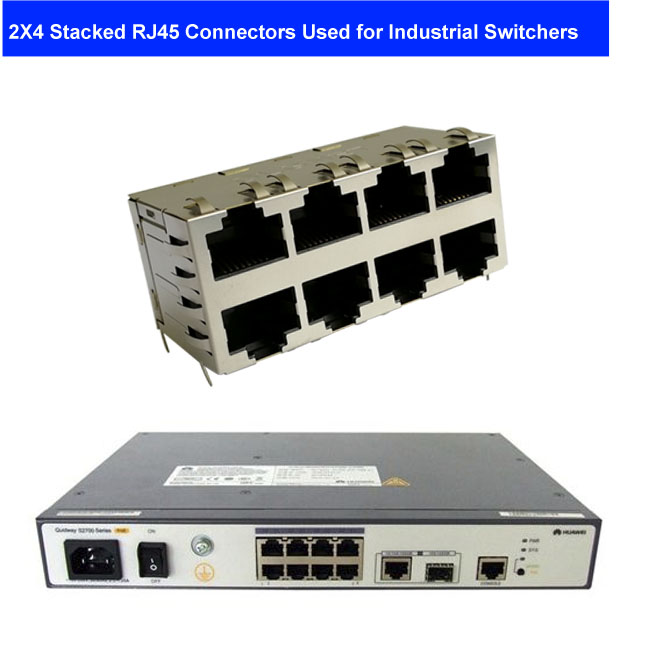

3. Stacked RJ45 Connectors with Transformers Application:

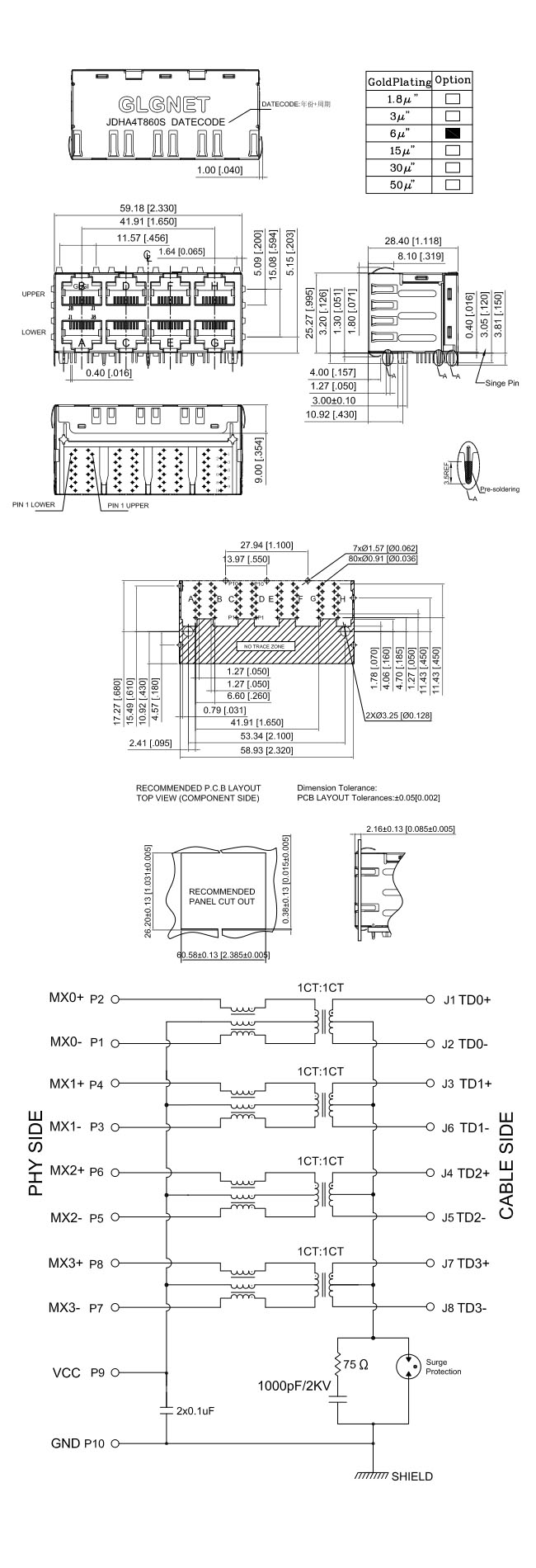

8. Mechanical Drawing:
